Submitting a Log File to LoTW via the Internet

To digitally sign a log file and upload via the Internet to the ARRL's Logbook of the World (LoTW) online service,

1. Verify that all of the QSOs in the log file were made with the same Station Callsign (the callsign you used over the air during the QSO), and from the same location. If this isn't the case, use your logging application or a text editor to split the log file into multiple log files, each of whose QSOs were made with the same Station Callsign from the same operating location, and separately submit each log file.

2. Start TQSL. If you do this before receiving your Initial Callsign Certificate, an Alert window will appear that informs you that you have no Certificate, and asks if you want to request one; click the Yes button, and proceed as described here.

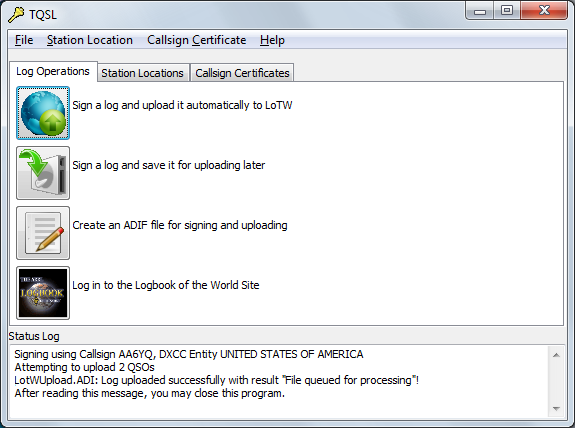

3. Select the Log Operations tab



   and click the Sign a log and upload it automatically to LoTW button.

4. In the Select File to Sign dialog,
    4.a Set the Files of type selector (on OS X, set the Enable selector) to ADIF files or Cabrillo files.
         * You can digitally sign Cabrillo log files for these contests without additional configuration.
         * When submitting a Cabrillo log file, mode PH is submitted as SSB
         * If your logging application does not ensure that only new or newly modified QSOs are presented to TQSL for submission to LoTW, enabling the Prompt for QSO Date Range option will help spare LoTW from having to process QSOs that it's already processed.
         * You can change the file extensions displayed when you set the Files of type selector.
         * You can enable or disable the submission of nonamateur callsigns.
    4.b Navigate to the folder containing the log file you wish to submit
    4.c Select log file you wish to submit
    4.d Click the Open button

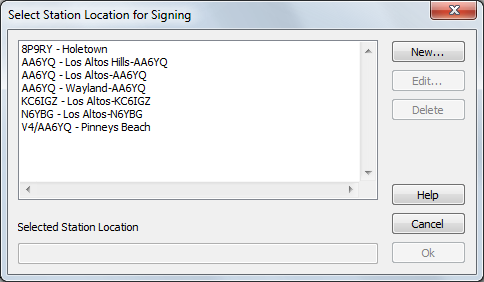

5. In the Select Station Location for Signing dialog, select the Station Location that specifies the Callsign and operating location used to make the log file's QSOs, and click the Ok button.



  If you select a Station Location that doesn't specify a Callsign Certificate (its Call Sign is set to [None]),
  • if you have exactly one Callsign Certificate whose DXCC entity matches the DXCC entity in the selected Station Location, TQSL will submit your QSOs with that Station Location and Callsign Certificate

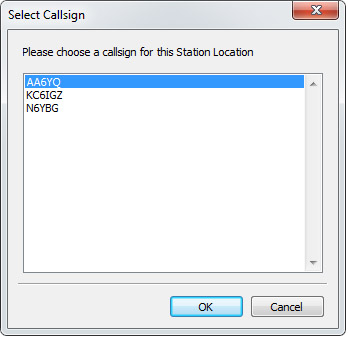

  • if you have more than one Callsign Certificate whose DXCC entity matches the DXCC entity in the selected Station Location, TQSL will prompt you to select the Callsign Certificate with which to submit your QSOs:

6. In the TQSL - Confirm signing dialog, verify that the information displayed is correct, and click the Yes button.

7. If TQSL is configured to not submit QSOs that lie outside a specified date range, the QSO Date Range dialog will appear; specify the desired Start Date and End Date, and click the Ok button.

If your logging application does not ensure that only new or newly modified QSOs are presented to TQSL for submission to LoTW, the QSO Date Range dialog can help prevent the submission of QSOs that have already been uploaded and processed.

8. If the Callsign Certificate associated with the selected Station Location is password-protected, the Enter password dialog will appear; enter the password, and click the OK button.

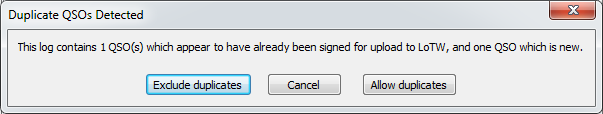

9. If TQSL detects any QSOs in the log file that have already been submitted to LoTW and haven't been subsequently modified, it will display the Duplicate QSOs Detected dialog:


    9.a Click the Exclude duplicates button to continue processing, ignoring the duplicate QSOs (recommended)
    9.b Click the Cancel button to abandon processing so you can either select a log file that doesn't contain duplicate QSOs, or use the QSO Date Range dialog to exclude duplicate QSOs
    9.c Click the Allow Duplicates button to submit the duplicate QSOs; note that the digitally signed log file submitted to LoTW will be marked as containing duplicate QSOs
      Note: if all QSOs in the log file are duplicates, the Exclude duplicates button will not be displayed

10. The Status Log in TQSL's main window will display the results of the operation, including the number of QSOs ignored because their dates were outside of the specified Date Range, and the number of duplicate QSOs detected:


    10.a If the upload to LoTW failed, a dialog box will be displayed offering to repeat the upload; click Yes to upload the digitally signed file again, or click No to abandon the operation.

11. After processing, the uploaded file will be shown in LoTW's Your Activity list with the filename selected in step 4.c above preceded by <TQSLUpl YYYYMMDD-HHMM>, where YYYY is the current year, MM is the current month, DD is the current day, HH is the current hour, and MM is the current minute.
